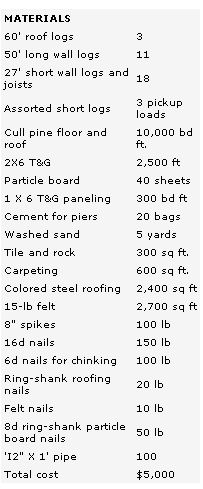

Chart of costs for practical log cabin design.

Trooper Tom Emonds uses his practical log cabin design to build low-cost log cabins for $5,000.

A Practical Log Cabin Design

Now that you’ve seen what can happen when you let a chain
saw run amok when building log cabins, I’d like to talk about a more practical
log cabin design. I’ve built two of these log cabins as rentals, and
they’re perhaps the most efficient (in terms of materials
and space) and practical I’ve done. With no roof or floor
insulation, they stay comfortable with one woodstove in
20 degrees Fahrenheit weather. My tenants seem to be very pleased with
them. (See the image gallery for a chart of costs for the log cabin design).

I used pier foundations: pyramids of rock and mortar about
2 feet high with pieces of rebar sticking out the top to pin
the sill logs. (Keeping the logs at least 14 inches away from the
ground is the most important way to make a log house last.)
The piers are about 3 feet across at the base and are spaced 6′
apart. I just scraped away the organic layer of soil and
laid the piers right on the subsoil.

Technically, both of these houses are mobile homes: They
have no permanent foundations and could be moved with a D-9
Caterpillar. Septic and building permits for mobile homes
are about $1,000 cheaper than those for “permanent”
structures, at least in my part of the country, and I saved
$1,800 per building over a solid-concrete foundation.

All of the logs are joined at the ends with half-round
notches, which are the easiest and most effective type I’ve
tried. Each joint is spiked, and the logs are pinned with
1/2 inch water pipe on each side of a window or door.

The floor joists are logs with one face cut flat, and I
used 2 by 6 tongue-and-groove (T&G) boards for all the
flooring. I arranged the joists so that I could use
odd-length pieces of T&G, which the mill sold me for
quite a bit less than premium 8 foot, 12 foot, and 16 foot boards.

By the time I built these houses, I’d figured out that full
second floors are more practical than lofts. Not only do
they provide a lot more floor space, but they can also be
sealed off to even out the heat in the house. I’ve found
that the second floor is comfortable for sleeping even with
the hatch between floors closed, and the first floor stays
much cozier.

I’ve tried cedar shakes, aluminum sheets, asphalt shingles,
and roll roofing, but as far as I’m concerned, none of them
stacks up to colored steel roofing. It’s durable,
economical, and easy to install, and the brown color looks
great on log houses. On these houses the metal is secured
to random-width planks I got for $100 a stack (about 8,000
board feet), but my Alaskan duplex is fired out with 2 by
6s and has 5-1/2 inches of polystyrene insulation.

Instead of putting dormers in the roof, which are
attractive but time-consuming to build, I just glassed in
the gable ends. These work OK for light, but for appearance
and ventilation, it might be worth the effort to build
dormers. There’s a screened vent near the peak at each end
of the house, so that hot summer air can rise to the
ceiling and escape.

I really worked on coming up with low-cost floor-finishing
techniques on these homes, and, as a result, they have the
nicest combinations of tile, rock, wood, and carpet of any
of my houses. I even rocked the entries and the areas where
the woodstoves go. I bought the carpet as roll remnants and
laid it on salvaged particle board I got for $2 per sheet.

Both of these rentals are powered by hydroelectricity. I
tapped springs high on the surrounding hillsides and tied
them into high-head, low-water-flow turbines from Harris
Hydroelectric Systems. The 12-volt electrical systems simplified wiring.
Hot water comes from coils in the woodstoves.

Even with all these nice details, the most I’ve spent on
either of these 24 foot by 47 foot houses is $5,000.
