Weekend DIY Project: How to Build a Cold Frame

Take on this relatively simple DIY cold frame project over the weekend to save money and extend your growing season.

article image
by AdobeStock/leopold
If self-sufficiency is one of your goals and gardening is one of your passions, building a cold frame is a great way to take a step forward in both areas.

Release your inner DIY spirit with the full array of projects designed to help you increase your self-sufficiency in the book DIY Projects for the Self-Sufficient Homeowner by Betsy Matheson Symanietz (Creative Publishing International, 2011). After building the cold frame described in this article, look at the other plans in the book for implementing a composting system, setting up a root cellar, and building a beehive, among others. Each comes with photos to guide you through the complete procedure, making this a great place for beginning DIYers to get started. The following excerpt comes from Chapter Six, “Building a Cold Frame.”

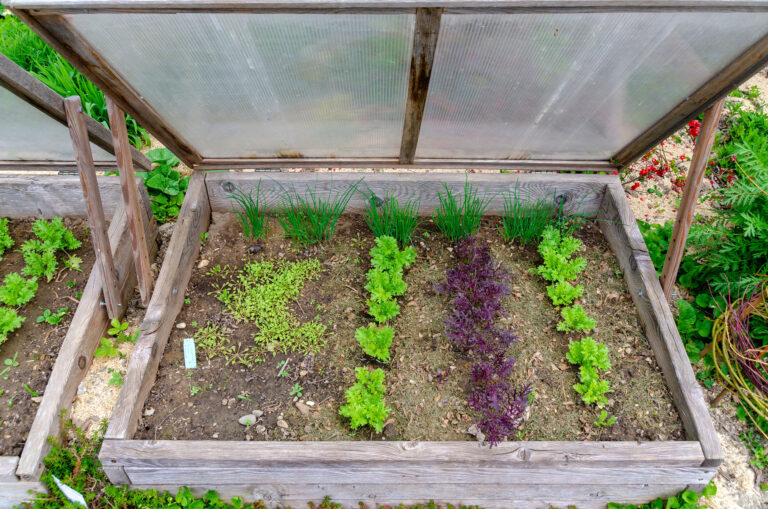

An inexpensive foray into greenhouse gardening, a cold frame is practical for starting plants six to eight weeks earlier in the growing season and for hardening off seedlings. Basically, a cold frame is a box set on the ground and topped with glass or plastic. Although mechanized models with thermostatically controlled atmospheres and sash that automatically open and close are available, you can easily build a basic cold frame yourself from materials you probably already have around the house.

The back of the frame should be about twice as tall as the front so the lid slopes to a favorable angle for capturing sunrays. Build the frame tall enough to accommodate the maximum height of the plants before they are removed. The frame can be made of brick, block, plastic, wood, or just about any material you have on hand. It should be built to keep drafts out and soil in.

If the frame is permanently sited, position it facing south to receive maximum light during winter and spring and to offer protection from wind. Partially burying it takes advantage of the insulation from the earth, but it also can cause water to collect and the direct soil contact will shorten the lifespan of the wood frame parts. Locating your frame near a wall, rock, or building adds additional insulation and protection from the elements.

TIP: The ideal temperature inside is 65 to 75 degrees Fahrenheit during the day and 55 to 65 degrees at night. Keep an inexpensive thermometer in a shaded spot inside the frame for quick reference. A bright spring day can heat a cold frame to as warm as 100 degrees, so prop up or remove the cover as necessary to prevent overheating. And remember, the more you vent, the more you should water. On cold nights, especially when frost is predicted, cover the box with burlap, old quilts, or leaves to keep it warm inside.

Cold Frame Project Steps

Find the complete list of tools and materials and a detailed diagram in the DIY Cold Frame Plans.

1. Cut the parts. This project, as dimensioned, is designed to be made entirely from a single 4-by-8 sheet of plywood. Start by cutting the plywood lengthwise to make a 36-inch-wide piece. TIP: Remove material in 4-inch-wide strips and use the strips to make the lid frame parts and any other trim you may want to add.

2. Trim the parts to size with a circular saw or jigsaw and cutting guide. Mark the cutting lines first.

3. Assemble the front, back, and side panels into a square box. Glue the joints and clamp them together with pipe or bar clamps. Adjust until the corners are square.

4. Reinforce the joints with 2-inch deck screws driven through countersunk pilot holes. Drive a screw every 4 to 6 inches along each joint.

5. Make the lid frame. Cut the 4-inch-wide strips of 3/4-inch plywood reserved from step 1 into frame parts. Assemble the frame parts into a square 38-by-39-inch frame. There are many ways to join the parts so they create a flat frame. Because the Plexiglas cover will give the lid some rigidity, simply gluing the joints and reinforcing with an L-bracket at each inside corner is adequate structurally.

6. Paint the box and the frame with exterior paint, preferably in an enamel finish. A darker color will hold more solar heat.

7. Lay thick beads of clear exterior adhesive/caulk onto the tops of the frames and then seat the Plexiglas cover into the adhesive. Clean up squeeze-out right away. Once the adhesive has set, attach the lid with butt hinges and attach the handles to the sides.

8. Move the cold frame to the site. Clear and level the ground where it will set. Some gardeners like to excavate the site slightly.

Reprinted with permission from DIY Projects for the Self-Sufficient Homeowner, published by Creative Publishing International, 2011.
