Convertible Camper Bed: Turn a Pickup Into a Camper

Here is one reader's ingenious yet simple method of installing a convertible camper bed in her pickup truck.

| August/September 1998

E.J. Bess of Tigard, Oregon, recently sent us this nifty little space-saving project that immediately had us all thinking of ways we could "convertible-ize" other pickups. She reports that, "By building a convertible camper bed in the back of my 1969 Ford pickup truck, I have the hauling capacity of the pickup plus a sleeping area that works fine for several weeks at a time camping out." We were convinced and quickly scratched our heads and wondered why we didn't think of it first.

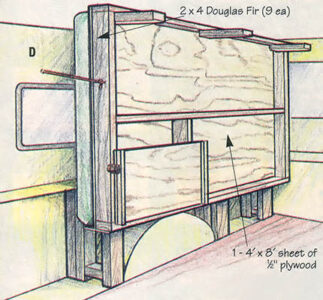

My living quarters consist of a bed that can be put up during the day and lowered at night for sleeping purposes. While the bed is in the up position, I have a foldable shelf under the bed which can be used as an eating table or a simple shelf. You can install as many tables as you find convenient.

I wanted the bed large enough for comfort, so I built it as wide as I could and still be able to pivot it up vertically above the wheel well.

The truck bed was in excellent condition, so I wanted to avoid drilling any unnecessary holes in the original metal when mounting the fold-up bed to the inside of the truck. Fortunately, I was able to use existing holes to mount the support legs.



First, I measured the height above the wheel well to the top of the canopy to see how much space I had. That determined the width of the bed I could build. Then I determined how much headroom I needed at the head of the bed to keep the blankets and bedding away from the front window because of condensation and moisture.

When I started building the actual bed, I made a 2 x 4 frame as a perimeter for the bed. I put plywood on the top of the frame and two legs on the outer edge of the bed (opposite the hinges) for support when the bed was down.
